32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill

Name: 32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill
Brand: Hebei Tengtian Welded Pipe Equipment Manufacturing Co.,Ltd.
SKU: HG89
Price: 50,000.00 USD
Availability: InStock

Ürün detayları:

Menşe yeri:	Çin
Marka adı:	TENGTIAN
Sertifika:	CE ISO9000 BV
Model numarası:	HG89

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Marka adı:

TENGTIAN

Sertifika:

CE ISO9000 BV

Model numarası:

HG89

Makine adı:

32-89mm Yuvarlak Kare Borular 3mm Kalınlık Otomatik Boru Değirmeni

Ürün:

yuvarlak boru

Özellik:

Kesinlik

Malzeme:

Karbon çeliği galvanizli

Diğer boru:

Kare boru

Maksimum Boyut:

89mm

Kalınlık:

3 mm

Uzunluk:

3-6m

Silindir:

dahil değil

Modeli:

Anahtar kelimeler:

Otomatik tüp fabrikası

Vurgulamak:

High Light

Vurgulamak:

32-89mm automatic tube mill

round square pipes tube mill

3mm thickness automatic tube mill

Ticaret Bilgisi

Min sipariş miktarı:

1 takım

Fiyat:

$100000 to $1 million

Ambalaj bilgileri:

Standart İhracat Paketi

Teslim süresi:

90 ifade günü

Ödeme koşulları:

L/C,T/T,Western Union,MoneyGram

Yetenek temini:

5 set/ay

Ürün Açıklaması

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill

Product Specifications

Attribute	Value
Machine Name	Automatic Tube Mill Equipment Welded Pipe Making Machine CE BV certified
Product	Round pipe
Feature	Precision
Material	Carbon steel galvanized
Other pipe	Square pipe
Max size	89mm
Thickness	3mm
Length	3-6m
Rollers	Not included
Model	89

Product Overview

The HG89 Automatic Tube Mill is designed to produce square pipes ranging from 32-89mm with thickness of 1-3mm. Utilizing advanced roll pass design, this production line manufactures high-quality welded steel pipes with precision machining and superior assembly.

Key Features

Double-radius hole style design for improved efficiency
Enhanced operating characteristics and safety features
Reduced roller cost while maintaining high productivity
CE BV certified for quality assurance

Technical Specifications

Material Specifications:

Standard: International standard tube mill machine

Material: Galvanized steel

Mechanical properties: σb≤520Mpa, σs≤365MPa

Strip Width: 100-280mm

Strip Thickness: 1-3mm

Inner Diameter of Coils: Φ508mm

Outer Diameter of Coils: Φ1300～φ2000mm

Coil Weight: ≤2T

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 0

Pipe Specifications:

Pipe Diameter: Round pipe 32-76mm

Length: 3-6m

Pipe-cutting Precision: 0-6mm

Forming Speed: Max 90m/min for 2mm thickness

Working Process

Strip steel to coil
Uncoiler
End straightener
Flattener
Shear welder
Storage material unit
Forming, welding, cooling, accurate pipe diameter sizing
Accurate pipe length sizing and cutting
Inspection
Packaging

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 1

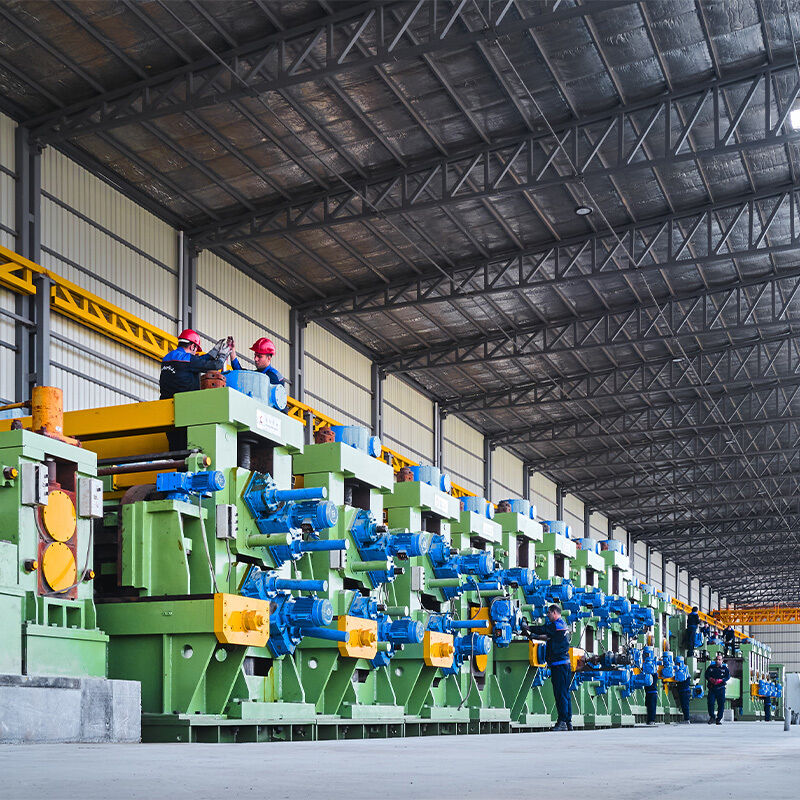

Machine Images

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 3

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 4

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 5

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 6

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 7

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 8

32-89mm Round Square Pipes 3mm Thickness Automatic Tube Mill 9
