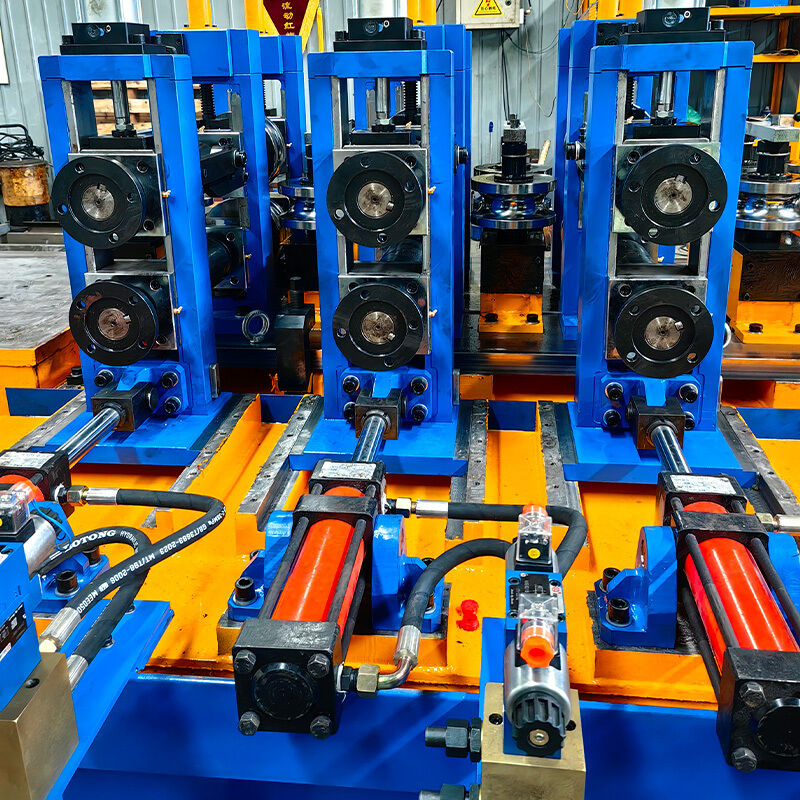

High Frequency Welded Pipe Mill 2.0-10.0mm
Product Specifications
| Attribute |
Value |
| Product Name |
High Frequency Welded Pipe Mill HGF 150X10 7.5" HF Welded Tube Mill 70x70-150x150mm |
| Tensile Strength |
σb≤520 Mpa |
| Pipe Size Range |
70x70-150x150mm |
| Thickness |
2.0-10.0mm |
| Max Production Speed |
20～50m/min |
| Fixed Cutting Length |
6-15m |
| Warranty |
One Year |
| Welding Type |
High Frequency Welding |
Product Overview
The HG254 high precision high frequency welded pipe production line is designed for manufacturing square pipes (70x70-150x150mm) and round pipes (φ89-φ190mm) with thickness ranging from 2.0-10.0mm. This advanced production line incorporates innovative design elements from domestic and international equipment, featuring full PC/computer control for optimal operation and maintenance.
Key Features
- Pipe diameter tolerance: ±0.1mm
- High frequency welder power: 600KW
- Maximum coil weight: 15,000Kg
- Steel strip width: 280-600mm (±0.2mm)
- Production speed: 20-50m/min
- Cutting precision: ±2mm
Production Process
- Raw material (strip)
- Uncoiler
- Cutting and Welding
- Feeding
- Storage material
- Passive leveling
- Forming rolling
- High frequency welding
- Remove weld burr
- Cooling
- Sizing
- Coarse straightening
- Length cut
- Collection
Main Equipment
1. Loading Car
| Coil Outer Diameter |
Φ1200-2000mm |
| Strip Width |
280-600mm |
| Max Strip Weight |
15.0 TON |
| Speed |
5m/min |
Precisely positions steel coils onto the uncoiler mandrel using lift oil cylinder.
2. One Mandrel Hydraulic Uncoiler
| Coil Outer Diameter |
Φ1200-2000mm |
| Coil Inner Diameter |
Φ508mm~Φ760mm |
| Strip Thickness |
2.0-10.0mm |
| Drive Motor |
4kw, 380V |
3. Pinch Leveling Machine
| Leveling Motor |
15KW |
| Pinch Roll Diameter |
Φ210x900mm (40Cr material) |
| Leveling Width |
280-600mm |
| Speed |
0-11M/Min |
4. 600KW High Frequency Welder
Includes switchgear rectifying cabinet, inverter output cabinet, console with PLC, connecting optical fiber, 3-D positioning table, air conditioner, and water-water cooler.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
