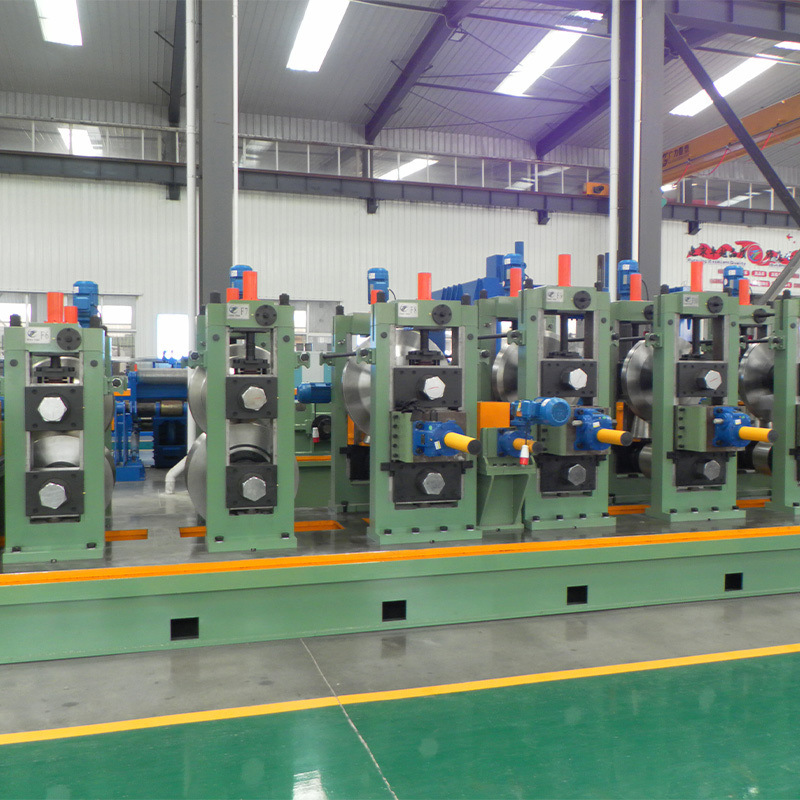

Precision Tube Mill Pipe diameter 25-76mm high frequency welded Precision Tube Mill
Product Specifications
| Attribute |
Value |
| Pipe shape |
Precision Tube Mill Pipe diameter 25-76mm high frequency welded |
| Pipe diameter |
25-76mm |
| Material |
HRC, CRC, Galvanised Steel |
| Mill speed |
30-100m/min |
| Welding Type |
High Frequency Welding |
| Thickness |
1.0-3.0mm |
Product Overview
The HG60 high frequency straight welded pipe production line manufactures welded steel pipes of Φ21.3mm-Φ33.7mm with 1.0mm-3.25mm wall thickness, capable of producing same size profiled pipes. Incorporating advanced domestic and international pipe making technology, our innovative design offers both economical and practical solutions.
Technical Specifications
| Feature |
Detail |
| Type |
New Pipe Production Line |
| Pipe Material |
Carbon Steel |
| Application |
Energy Supply Pipe |
| Production Capacity |
30-100m/min |
| Power |
200KW |
| Round Pipe Range |
φ20-φ60mm |
| Power Supply |
380V, 50Hz (Customizable) |
| Machine Area |
7*65M³ |
| Strip Steel Width |
65-110mm |
| Warranty |
One Year |
Production Process
material(steel coil) -> uncoiler -> shear and welder -> horizontal(or cage) accumulator -> forming mill -> HF solid welder -> sizing mill -> roughly straightening(turkey head) -> cut off machine -> run out table
Key Advantages
- Continuous production capability without roller changes in rough-forming section
- Reliable welding seam technology for consistent quality
- Produces most stainless steel pipes used in construction applications
- Low production cost with high production capacity
Usage & Precision
Maintains product shape and precision through welded sheet structure, motor reducer drive, and chain transmission. Chromed rollers ensure smooth molding plate surfaces resistant to marking during stamping.
About Tengtian Tube Mill Co., Ltd.
Specializing in high-frequency welded pipe equipment and cold bend steel equipment manufacturing, we combine Japanese advanced technology with strict manufacturing standards. Our products feature advanced configurations, stable quality, and excellent performance, serving domestic markets and exporting to Korea, Vietnam, Indonesia, South Africa, Kazakhstan and more.
Our Services
- On-site engineer support for installation and operator training
- One year quality guarantee with lifetime repair support
- Comprehensive pre-sale and after-sale services including workshop design and production output planning
- Option for extended engineer support (months to 1 year) to optimize output and reduce costs
- Complete project design services for stainless steel/carbon steel pipe production
- Full responsibility for loading and shipping
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
