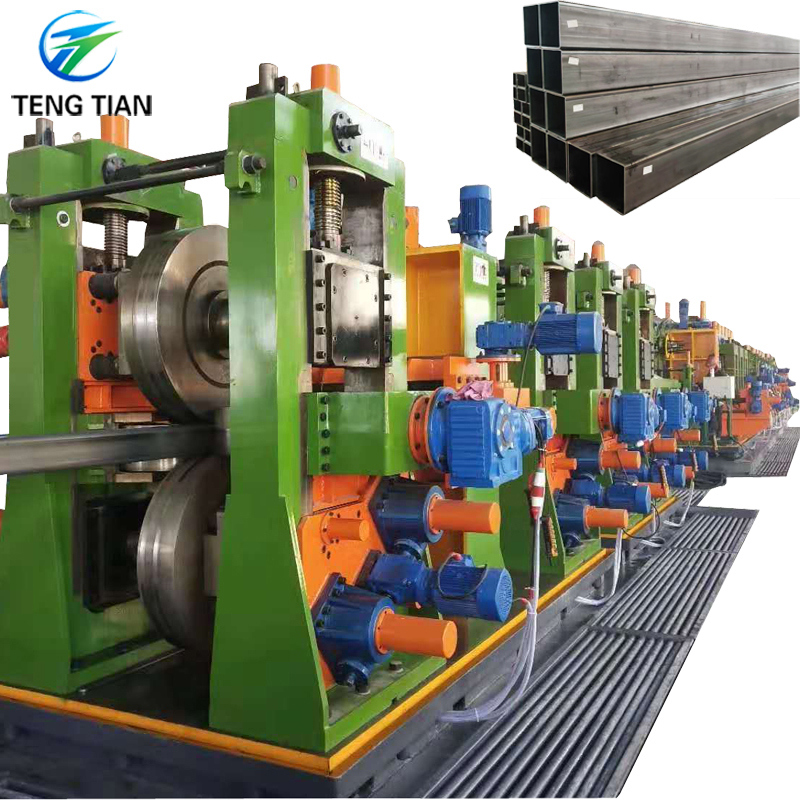

Full Automatic FF Forming For 200 × 200mm Pipe Customized Design Square Tube Mill
Key Specifications
| Attribute |
Value |
| Mill Name |
Full Automatic FF Forming For 200 × 200mm Pipe Customized Design Square Tube Mill |
| Product Speed |
Max 50m/min |
| Pipe Diameter |
80×80-200×200mm |
| Pipe Thickness |
1.0-3.0mm |
| Type of Welding |
High Frequency Welding |
| Special Requirements |
Can be designed according to customer specifications |
Product Description
This automatic square and rectangular tube equipment combines international market demands with our company's LW series unit and FF forming technology. It features rapid adjustment of forming rollers, significantly reducing product changeover time to improve efficiency and reduce production costs.
The equipment can produce different size tubes without roll changes, using one set of combined molds. For different tube specifications, only adjustments are needed - no mold changes required. This achieves a roller saving rate above 90%, substantially reducing roller costs.
Production Process
Material (steel coil) → Uncoiler → Shear and Welder → Horizontal (or cage) Accumulator → Forming Mill → HF Solid Welder → Sizing Mill → Rough Straightening (Turkey Head) → Cut Off Machine → Run Out Table
Technical Parameters
| Parameter |
Value |
| Stands of Forming Mill |
7 |
| Stands of Sizing Mill |
5 |
| Square Pipe Size |
80×80-200×200mm |
| Square Pipe Thickness |
1.0-3.0mm |
Available ERW Tube Mill Models
| Model |
Diameter Range |
Pipe Thickness |
Line Speed (m/min) |
| LW200 |
30×30-50×50mm |
1-3mm |
20-80 |
| LW600 |
60×60-150×150mm |
2-7mm |
20-60 |
| LW800 |
80×80-200×200mm |
1-3mm (or 4-13) |
20-40 |
| LW1000 |
100×100-250×250mm |
3-12.7mm (or 4-14) |
15-30 |
| LW1200 |
120×120-300×300mm |
3-14mm |
10-25 |
| LW1400 |
150×150-350×350mm |
4-14mm |
8-20 |
| LW1600 |
200×200-400×400mm |
4-16mm |
8-20 |
Note: The above models are for reference only. Product range and thickness are adjustable. Our engineering team can design machines according to your special requirements.
1.) We will send the engineer for the installation and training your workers how to operate this machine in correct way.
2.) Warranty Team
One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.) We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping
FAQ:
Q1: Are you manufacturer or trading company?
A1: we are manufactuer , more than 20 years experience.
Q2: What is the max size of pipe you have even produce?
A2: Max φ630mm
Q3:Can I visit your customer machine line?
A3: Yes, but I need to get agreement from my customer firslty.
Q4: what is your machine advantages?
A4:Contain Full automatic, Direct forming square, Share rollers. Fast change system
Q5:How I can get the quotation?
A5:Please send your requires of pipe size , thickness to us.
